Industrial Strainers

We provide a wide range of products

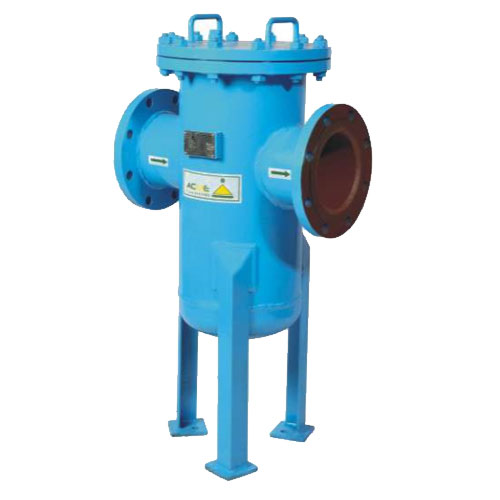

SIMPLEX BASKET STRAINERS

  • Size: 1” to 60” Flanged End / Buttweld End
  • Moc: Carbon Steel, Stainless Steel or Alloy Steel
  • Pressure Rating: 150# to 2500#
  • Features:
    • More open area for debris collection.
    • Dimensions can be modified to suit customer requirement.
    • Vent and drain provided on all strainers.
  • Options:
    • Bolted, quick opening hinged cover or davit assembly.
    • Steam jacket for highly vicious fluids.
    • Magnetic screen inserts.
    • Pressure differential gauge and switch connections.
    • Pleated filter elements for more filtration.
  • Special levels of NDE and material testing

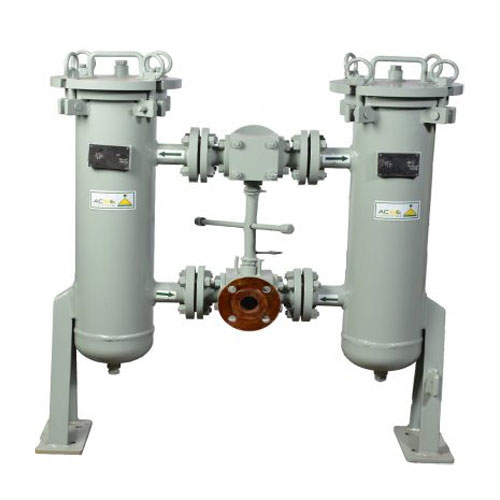

DUPLEX BASKET STRAINERS

  • Size: 1/2” to 2” Threaded Ends, 1” to 24” Flanged Ends
  • Moc: Carbon Steel, Stainless Steel or Alloy Steel
  • Features:
    • Continuous Flow – No shut down for cleaning.
    • Single lever operation for safety and simplicity.
    • Higher Degree of Filtration area.
    • Butterfly or 3 way ball valve design.
  • Options:
    • Bolted, quick opening hinged cover or davit assembly.
    • Steam jacket for highly vicious fluids.
    • Magnetic screen inserts.
    • Pressure differential gauge and switch connections.
    • Pleated filter elements for more filtration.
  • Special levels of NDE and material testing

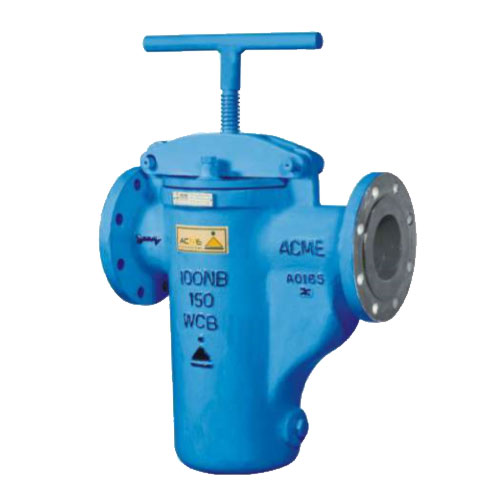

QUICK OPENING CASTED BASKET STRAINERS

  • Size: 1/2” to 2” Screwed Ends/Socket Weld Ends, 3/4” to 12” Flanged End Connection
  • Moc: Carbon Steel, Stainless Steel or Alloy Steel
  • Features:
    • Quick open cover-no tools needed
    • Integrally cast housings
    • Flow from inside to outside the basket to trap and retain debris
    • Threaded drain
    • Large screen area ensures efficient filtration with low pressure drop.
  • Options:
    • Viton, PTFE-encapsulated, or EPDM seals
    • Supplied with equipment such as D.P. Gauges and switches, valve for vent and drains
    • Magnetic screen inserts.
    • Pleated filter elements for more filtration.

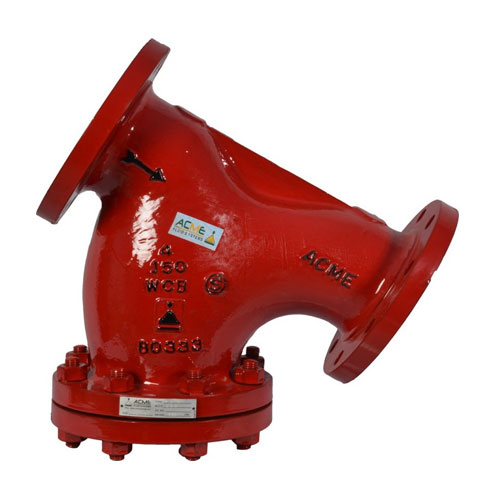

Y TYPE STRAINERS

  • Size: 1/4” to 2” Screwed Ends/Socket Weld Ends, ½” to 16” Flanged End / Buttweld Ends
  • Moc: Carbon Steel, Stainless Steel or Alloy Steel
  • Features:
    • Compact design
    • Horizontal or vertical installation
    • Large screening capacities
    • Precision machined seats
    • Bolted cover with blow off drain connection
  • Options:
    • Large size and pressure ratings
    • D.P. Tappings/Gauge
    • Magnetic screen inserts.
    • Special finish/linings
    • Pleated filter elements for more filtration area.

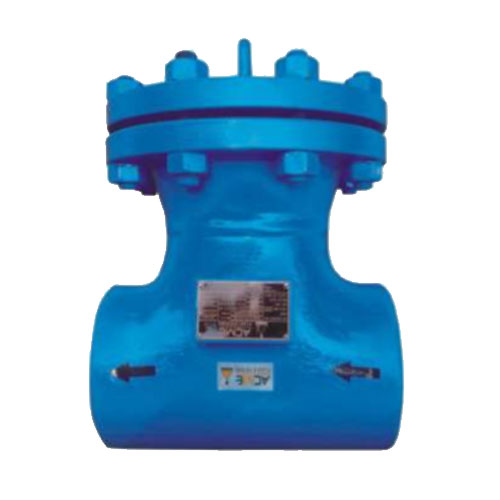

T TYPE STRAINERS

  • Size: 1” to 24” Flanged End / Buttweld Ends
  • Moc: Carbon Steel, Stainless Steel or Alloy Steel
  • Pressure Rating: 150# to 2500#
  • Features:
    • Straight through flow design/side flow.
    • Dimensions can be modified to suit customer requirement.
    • Drain provided on strainers.
  • Options:
    • Quick opening covers.
    • Cover lifting davits.
    • Upstream and downstream screen supports allow bi-directional flow.

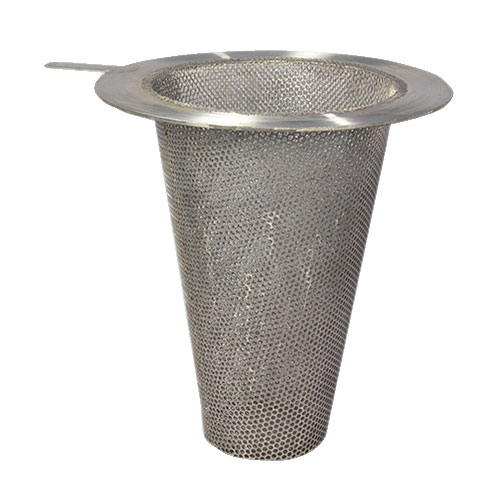

TEMPORARY STRAINERS

  • Size: 1” to 48” To be sandwiched between FF, RF, RTJ flanges
  • Moc: Carbon Steel, Stainless Steel or Alloy Steel
  • Pressure Rating: 150# to 2500#
  • Three Types of Design Available: Conical, Flat Hat and Plate Type
